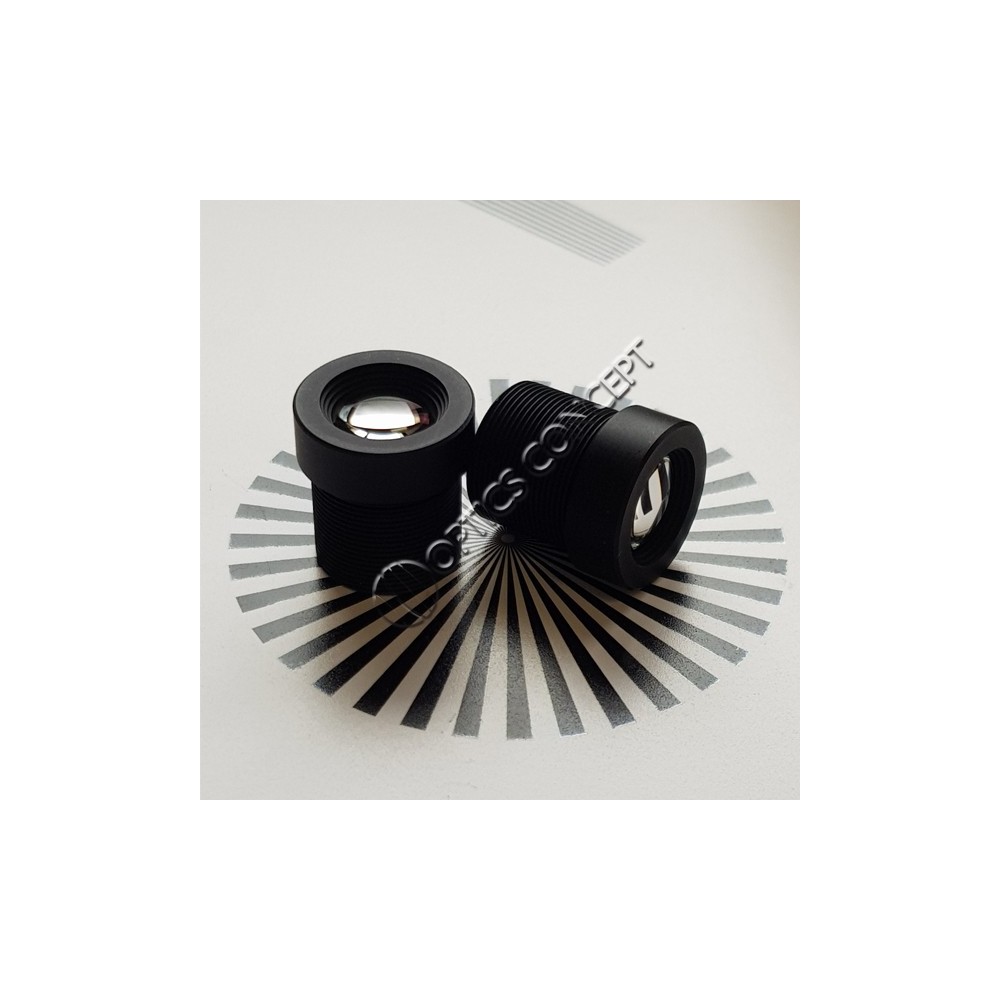

Lens DSL208A

The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.

DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®

This objective is part of a new optical generation. There is no better in technology .

This optical record with a field of view of 90 °.

Key Features :

•  Low F/# for optimal low-light performance
•  All glass elements provide environmental stability
•  Cost effective construction

Applications :

•  Security/Surveillance Dome Cameras
•  Automotive surround view

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT

The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.

Key Features :

• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance

Applications :

• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras

Compatibility GoPro ® HERO 1, HERO 2, HERO 3, HERO 3+ and HERO 4 ®

The GoPro can finally be equipped with a telephoto lens with horizontal field of view 15°.

An image of high quality.

Following the latest optical generation, this lens will give exceptional performances.

The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.

Available in NIR versions: No IR cut filter

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter
