Reference: DSL491D-655-F2.8

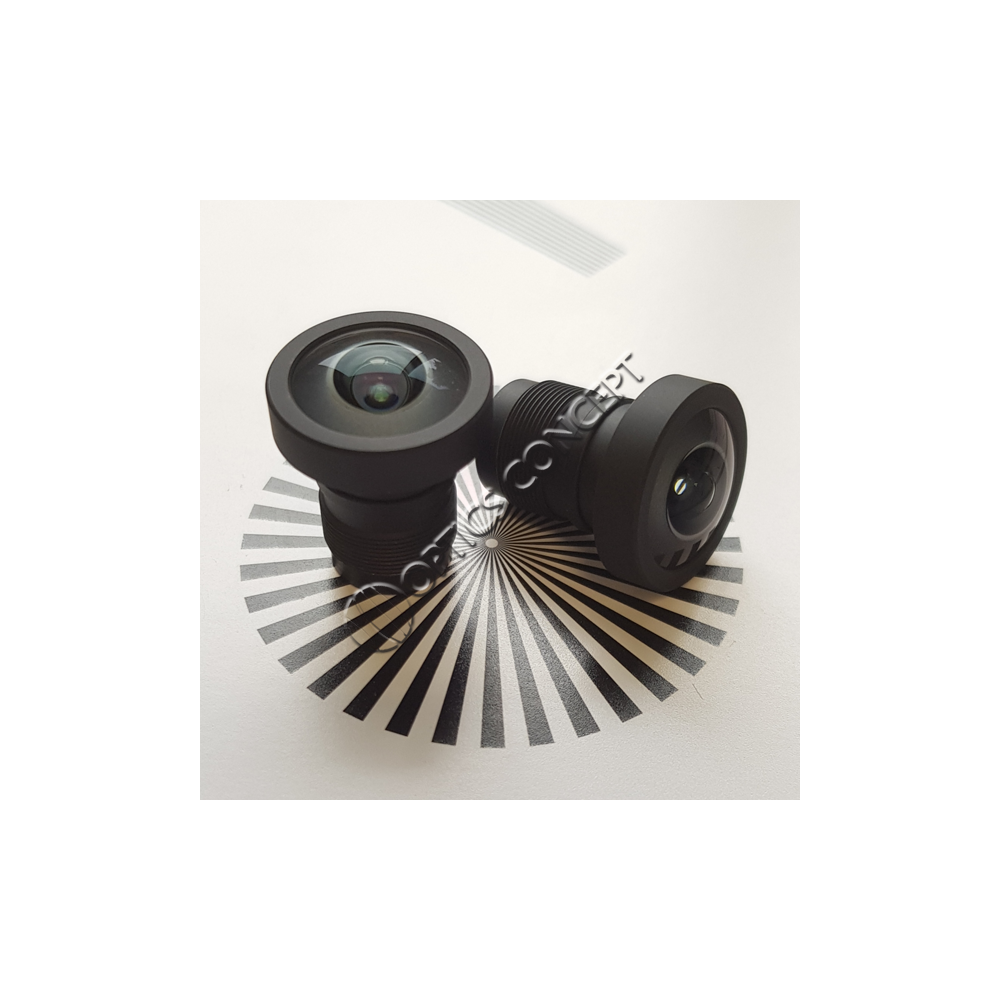

The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Key Features :
• HDR-Optimized design
• All-Glass Design for thermal stability
• Good low light performance: F/2.8 aperture
• Compact size
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
Data sheet
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatibility GoPro ® HERO 1, HERO 2, HERO 3, HERO 3+ and HERO 4 ®
The GoPro can finally be equipped with a telephoto lens with horizontal field of view 15°.
An image of high quality.
Following the latest optical generation, this lens will give exceptional performances.
The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.
Available in NIR versions: No IR cut filter
Key Features:
• Maximum field of view (FOV): 180o
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance
Application :
• Security/Surveillance
• Consumer imaging
• Automotive surround view
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
NIR versions: No IR cut filter
DSL398B-660-F2.8
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Security and Surveillance
• Consumer Devices and IoT
• Drones
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.
*NIR = without IR cut filter
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
A brand new lens with 60°FOV. Perfect for new 4K sensors
Compatibility : GoPro® HERO1, HERO2, HERO3, HERO3+ and HERO4®.
This lens belongs to a new optical design generation. The DSL606 offer the best technology.
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
Key Features:
• 176° wide angle FoV
• Good low light performance: F/2.0 relative aperture
• All glass design to optimize thermal stability
Applications:
• Automotive Rear View Cameras
• Security and Surveillance
• Computer Vision
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL355A-650-F2.8
Key Features :
• Miniature Wide Angle Lens
• Compact size
• High image quality
• Low distortion
Applications :
• Security / Surveillance
• Telecommunications / Video-Conferencing
• Action Cameras
Key Features :
• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)
Applications :
• Security and Surveillance
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
