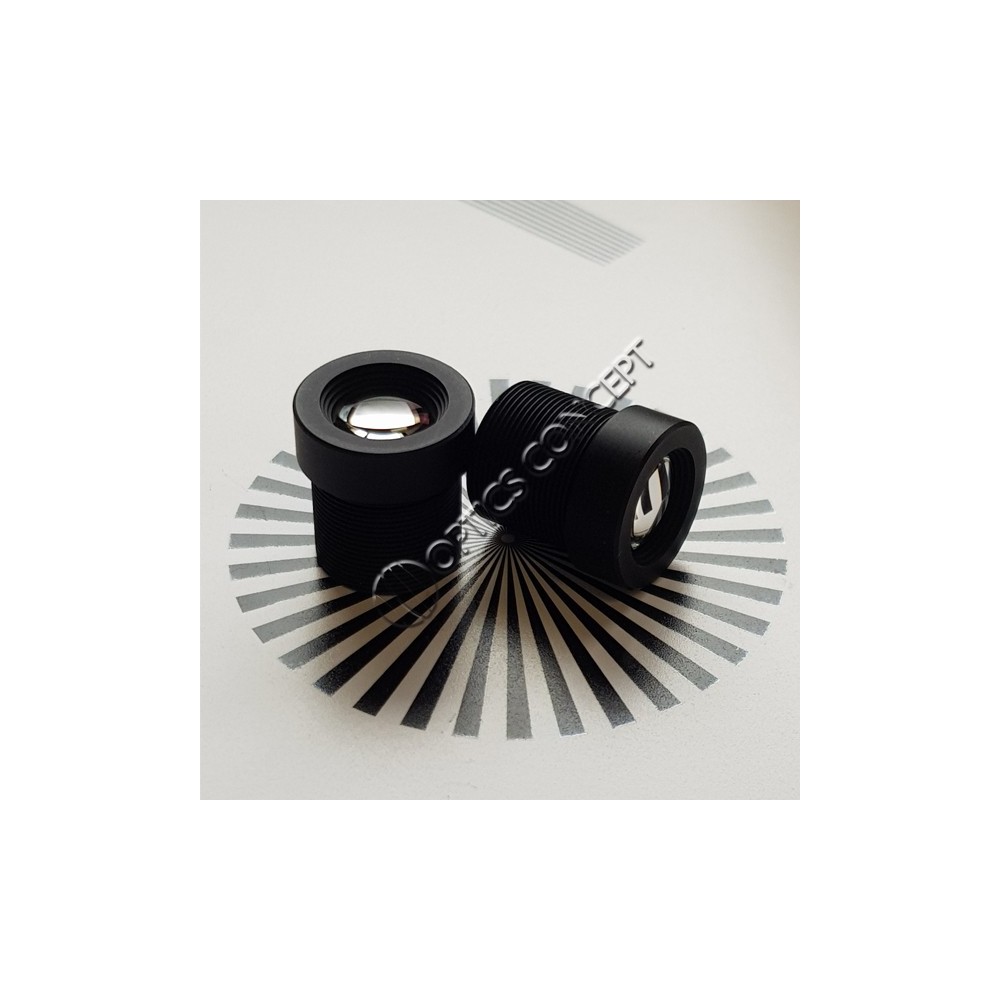

Lens DSL208A-650-F4.0

DSL311A 650F2.8

Key Features :

• 151° FOV
• F/2.8
• 22mm TTL

Applications:

• Security/Surveillance
• Automotive Rear-view
• Sports and Wearable Cameras

DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens

Key Features :

• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL

Applications :

• Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.

Maintains large field properties for your camera and HD quality.

It will bring you images with very low distortion and optimum color resolution.

The prefered optical of drone owners.

Choose your filter : we can offer a version for infrared observations.

The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.

Le DSL660 est un objectif grand angle haute performance conçu pour offrir des performances exceptionnelles sur les capteurs >4K avec une distorsion extrêmement faible et est optimisé pour réduire les artefacts de lumière parasite.

The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.

Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®

• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR

Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®

This objective is part of a new optical generation. There is no better in technology .

This optical record with a field of view of 90 °.

The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
