Reference: DSL491A-655-F2.8

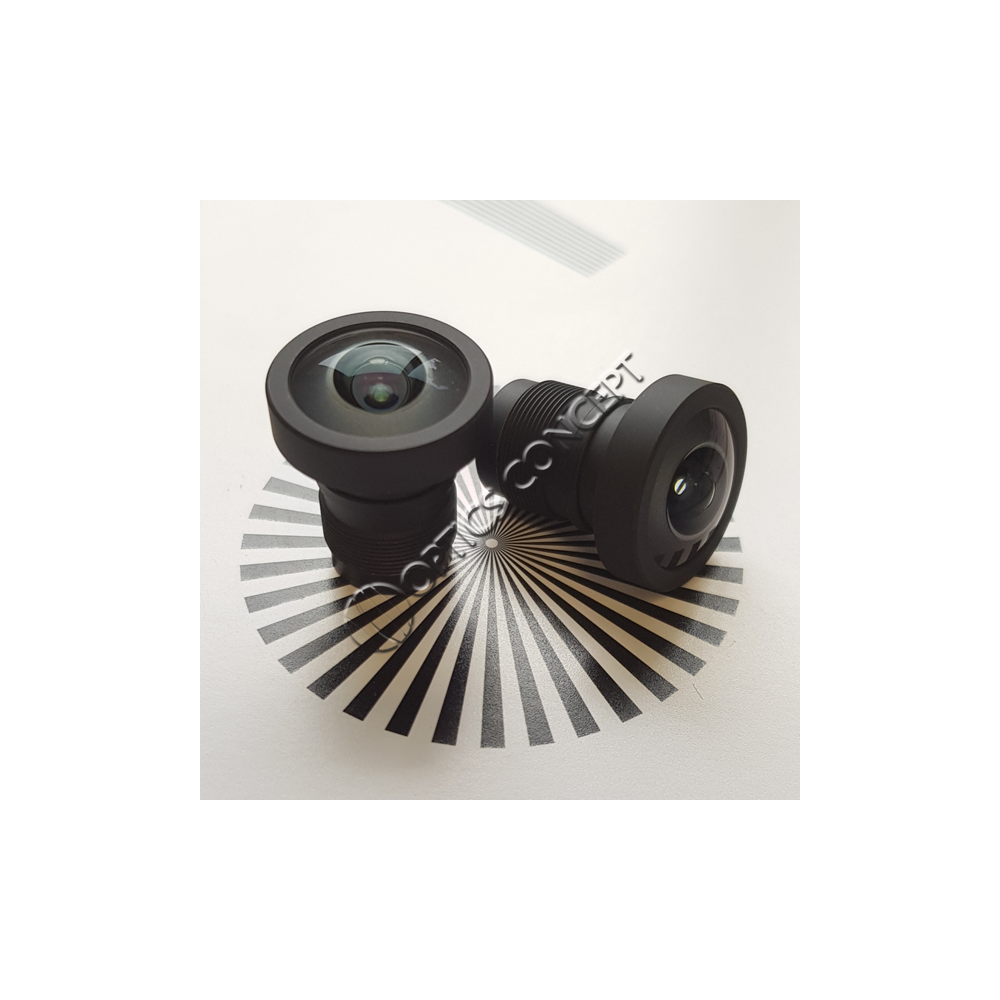

The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
Key Features :
• HDR-Optimized design
• All-Glass Design for thermal stability
• Good low light performance: F/2.8 aperture
• Compact size
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
Data sheet
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
DSL315B-650-F2.3
Key Features :
4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability
Applications :
• Security / Surveillance
• VR / 360o cameras
• Computer Vision
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

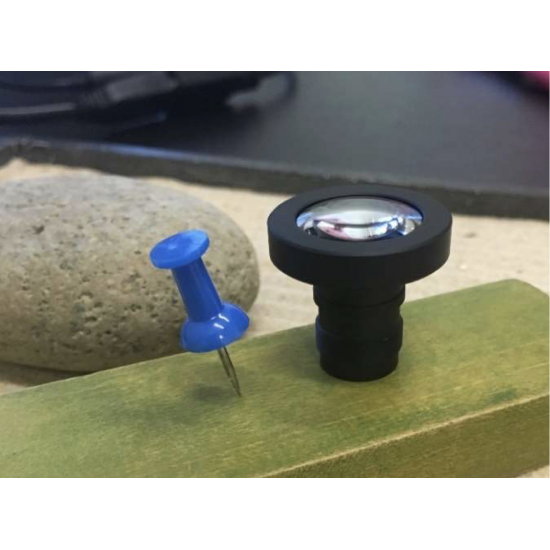

Le DSL660 est un objectif grand angle haute performance conçu pour offrir des performances exceptionnelles sur les capteurs >4K avec une distorsion extrêmement faible et est optimisé pour réduire les artefacts de lumière parasite.
Key Features :
• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
Available in NIR versions: No IR cut filter
The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.
Available in NIR versions: No IR cut filter
The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.
Key Features :
• Wide angle, low distortion
• High performance compact design
• Finite conjugate optimized
Applications :
• Document scanning
• Video-conferencing
• Finite Imaging
DSL398B-660-F2.8
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Security and Surveillance
• Consumer Devices and IoT
• Drones
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
NIR versions: No IR cut filter
A brand new lens with 60°FOV. Perfect for new 4K sensors
Compatibility : GoPro® HERO1, HERO2, HERO3, HERO3+ and HERO4®.
This lens belongs to a new optical design generation. The DSL606 offer the best technology.
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
