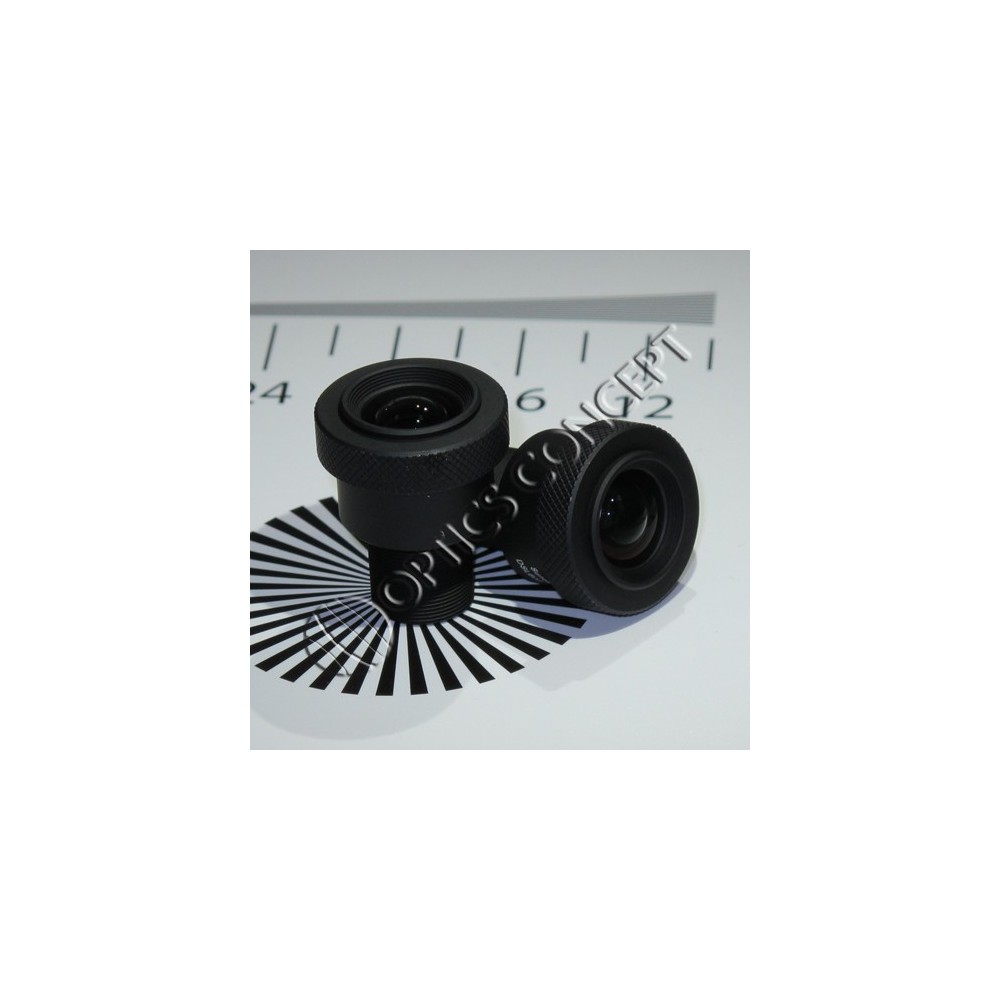

LENS DSL606

Key Features :

• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).

DSL315B-650-F2.3

Key Features :

4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability

Applications :

• Security / Surveillance
• VR / 360o cameras
• Computer Vision

The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.

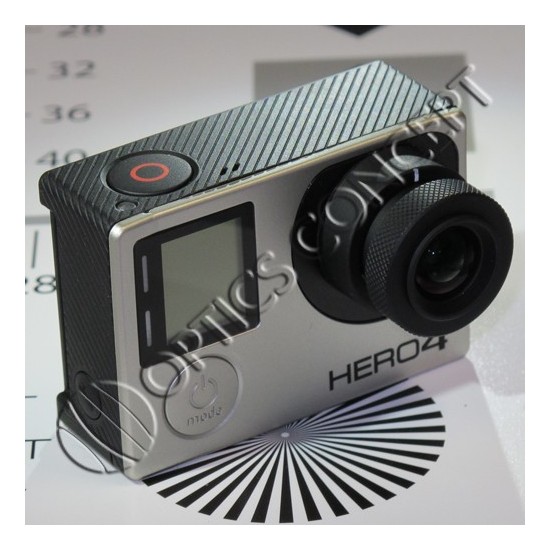

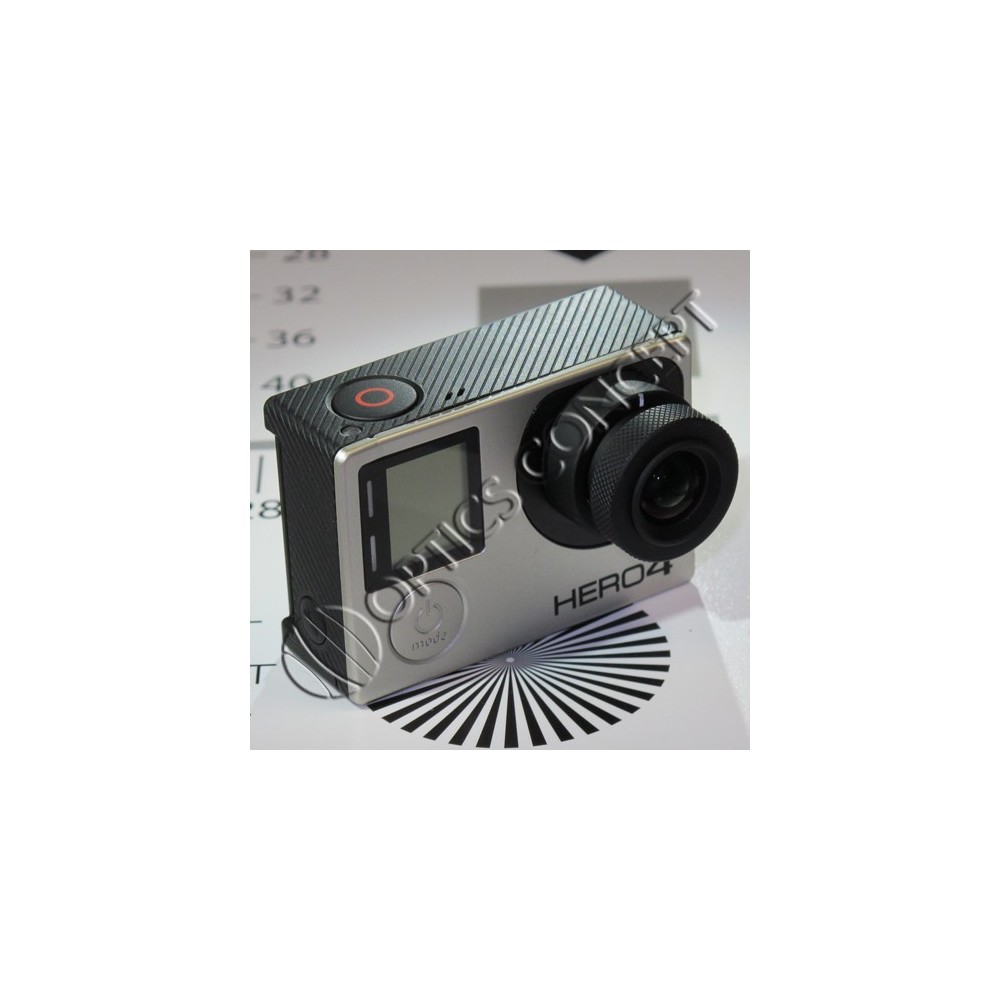

If you have broken or scratched your original GoPro lens. You need to buy DSL385.

Performance is identical to the original lens of your camera.

You can use this lens with the GoPro cameras HERO1, HERO2, HERO3, HERO3+ and HERO4®.

choose your filter : we can offer a version for infrared observations.

Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®

This objective is part of a new optical generation. There is no better in technology .

This optical record with a field of view of 90 °.

The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.

NIR versions: No IR cut filter

The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.

Available in NIR versions: No IR cut filter

Key Features :

• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance

Applications :

• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras

Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®

• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.

DSL217C-670-F1.8

•  Maximum field of view (FOV): 185o
•  F/1.8 aperture for low-light performance
•  Hybrid glass-plastic design
•  Suitable for megapixel resolution sensors

DSL203A Wide Angle Security Lens

Key Features :

• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability

Applications :

• Security and surveillance
• Automotive rear view cameras

The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.

Available in NIR versions: No IR cut filter

Key Features :

•  Compact Size
•  F/1.6 for low light and high framerate cameras
•  Excellent thermal Stability
•  Optimized for HDR sensors

Application :

•  Automotive Forward Machine Vision (sensing)
•  Automotive Mirror Replacement (CMS/eMirror)
•  Object Recognition
