Reference: DSL934B-650-F3.0

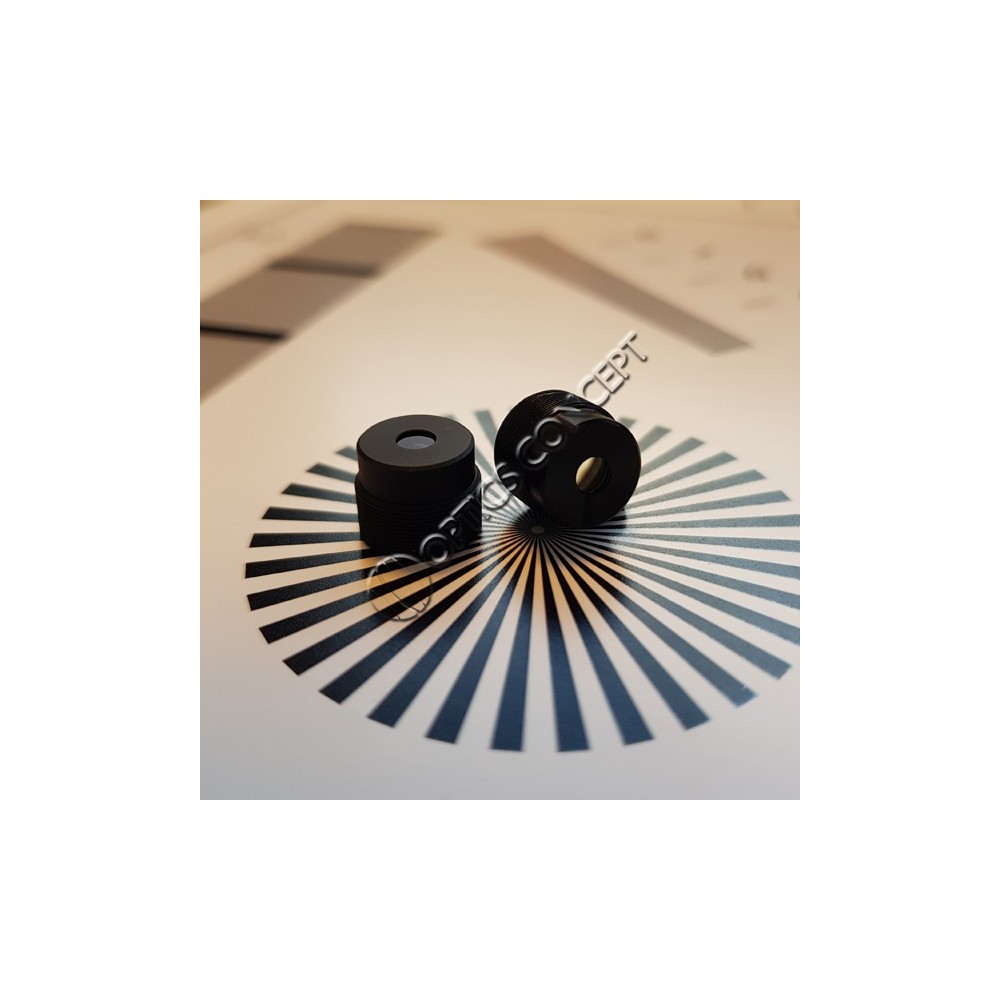

The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.
Key Features :
• Compact form factor
•All-glass construction optimizes thermal stability
Applications :
• Security / Surveillance cameras
• Computer Vision cameras
• Wearable cameras
Data sheet
The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
NIR versions: No IR cut filter
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
DSL315B-650-F2.3
Key Features :
4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability
Applications :
• Security / Surveillance
• VR / 360o cameras
• Computer Vision
Key Features :
• Low F/# for optimal low-light performance
• All glass elements provide environmental stability
• Cost effective construction
Applications :
• Security/Surveillance Dome Cameras
• Automotive surround view
Key Features :
• All glass construction to optimize thermal stability
• Low F/# for improved low light performance
• Compact size
Applications :
• Security and Surveillance
• Drone cameras
• Immersive Imaging
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
DSL419B-650-F2.0
Key Features :
• SuperFisheye FOV: 180°
• All-Glass Design• Good low light performance: F/2.0 aperture
• Compact size
Applications :
• Security and Surveillance
• Drones
• Immersive Imaging
• Video Communication
• Consumer Devices and IoT
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.
*NIR = without IR cut filter
Key Features :
• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)
Applications :
• Security and Surveillance
DSL322A-650-F2.0
Key Features :
• Miniature Wide Angle Day/Night Lens
• Compact design
• High image quality
• Wide angle design
Applications :
• Security / Surveillance
• Computer Vision
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
Key Features :
• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
