Lens DSL388-NIR

Key Features :

•  Low F/# for optimal low-light performance
•  All glass elements provide environmental stability
•  Cost effective construction

Applications :

•  Security/Surveillance Dome Cameras
•  Automotive surround view

The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.

NIR versions: No IR cut filter

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.

Available in NIR versions: No IR cut filter

DSL398B-660-F2.8

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Security and Surveillance
• Consumer Devices and IoT
• Drones

The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT

Key Features :

• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)

Applications :

• Security and Surveillance

The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

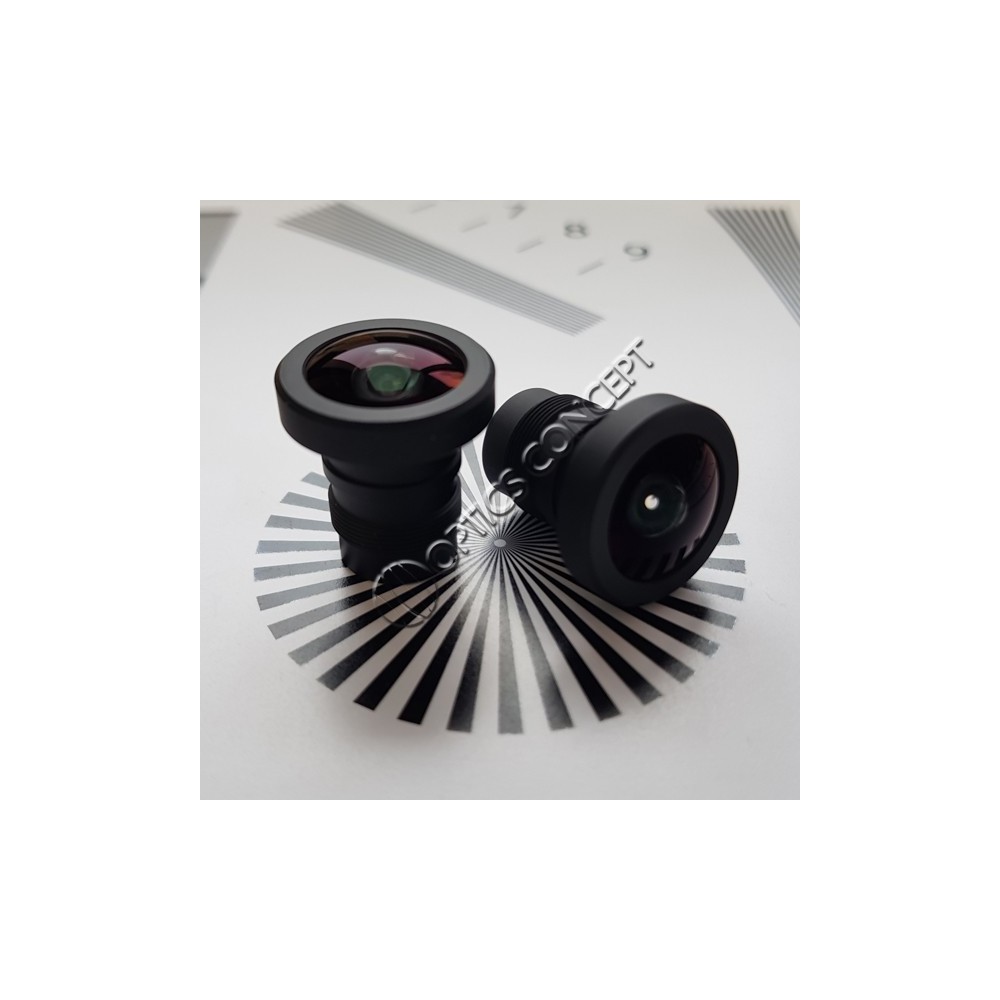

Compatibility GoPro ® HERO 1 HERO 2 HERO 3, HERO 3+ and HERO 4®

This objective is part of a new optical generation. There is no better in technology .

This optical record with a field of view of 90 °.

The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision
