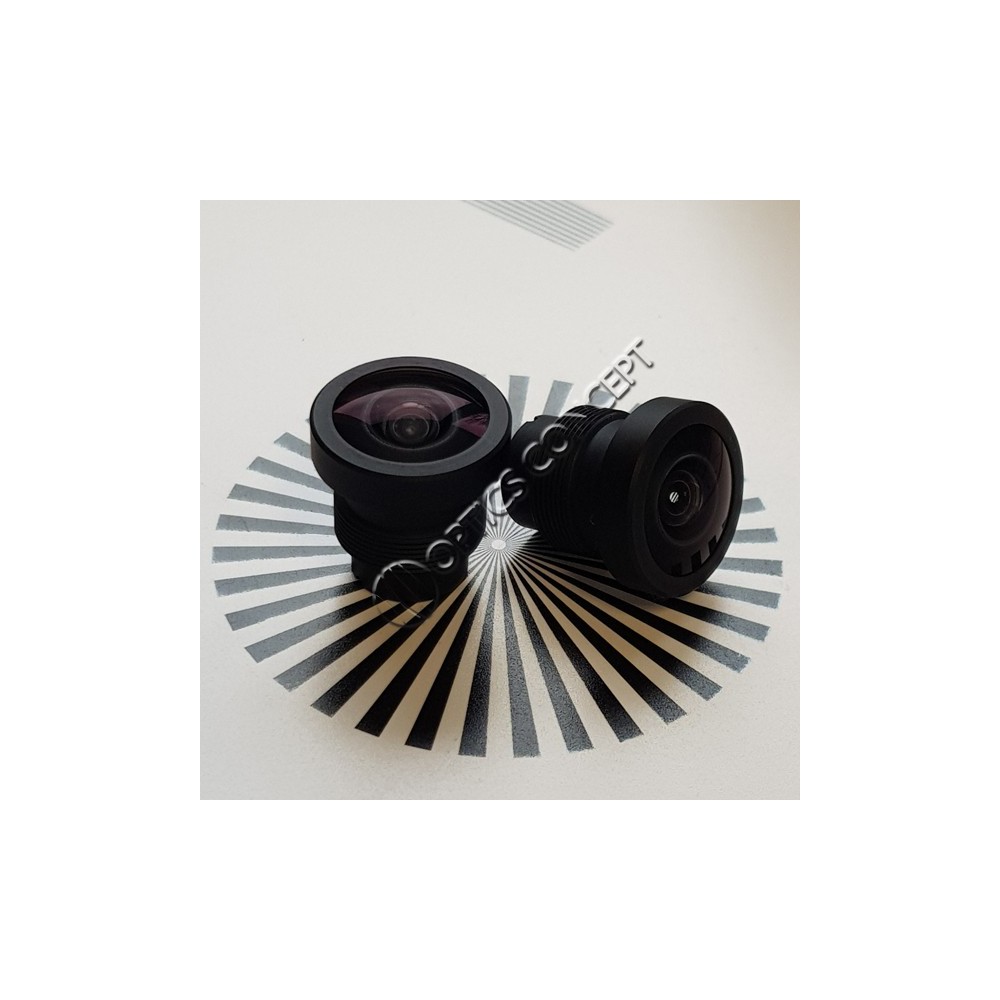

Lens DSL217

The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.

NIR versions: No IR cut filter

Key Features :

• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).

Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®

• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR

The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.

Key Features :

• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size

The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision

DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.

Maintains large field properties for your camera and HD quality.

It will bring you images with very low distortion and optimum color resolution.

The prefered optical of drone owners.

Choose your filter : we can offer a version for infrared observations.

The DSL934B is a multi-element glass lens optimized for 3-5MP imagers with up to 1/1.8” format size. The compact size and all-glass all-metal construction make this lens ideal for applications requiring high resolution and temperature stability such as discreet outdoor security cameras.

DSL311A 650F2.8

Key Features :

• 151° FOV
• F/2.8
• 22mm TTL

Applications:

• Security/Surveillance
• Automotive Rear-view
• Sports and Wearable Cameras

The DSL935 lens is a multiple element glass lens optimized for 1/1.8” format imagers with up to 5MP resolution. The small form factor makes this lens ideal for high performance handheld cameras.

DSL315B-650-F2.3

Key Features :

4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability

Applications :

• Security / Surveillance
• VR / 360o cameras
• Computer Vision
