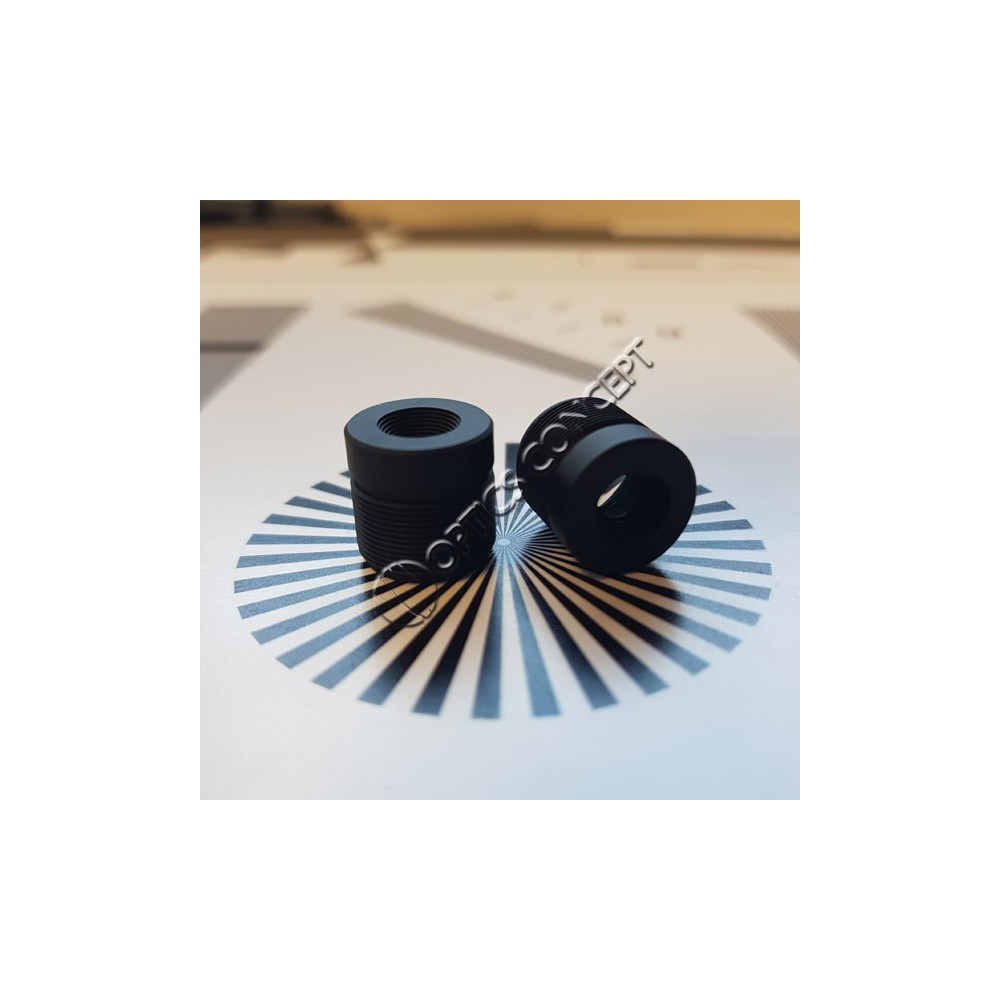

Reference: DSL947B-700-F1.6
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
The DSL947 lens is a compact lens designed for automotive forward machine vision (sensing) and wing mirror replacement cameras using high dynamic range (HDR) sensors with 1MPx resolution or more. The lens features a low F-nbr required for good light performance and high frame rate applications. The all-glass design provides stable image quality over a wide temperature range.
Data sheet
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.
Available in NIR versions: No IR cut filter
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.
Available in NIR versions: No IR cut filter
The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.
*NIR = without IR cut filter
A brand new lens with 60°FOV. Perfect for new 4K sensors
Compatibility : GoPro® HERO1, HERO2, HERO3, HERO3+ and HERO4®.
This lens belongs to a new optical design generation. The DSL606 offer the best technology.
Key Features :
• SuperFisheye FOV: 194°
• Tailored DistortionTM
• Superior low light performance: F/2.2 aperture
• Compact size
Applications :
• Automotive Surround View
• Security and Surveillance
• Internet of Things (IoT)
• Computer Vision
Key Features :
• F/1.7 for enhanced low light sensitivity
• All glass to optimize thermal stability
• Low stray light for HDR sensors
Applications :
• Automotive Forward Machine Vision (Sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Security Cameras
• Computer Vision
The DSL978 is a compact, low F/# lens designed for low light HD/HDR applications. This lens is optimized for useHD sensors with imager format up to 1/3”. The all-glass design provides stable image quality over a wide temperature range.
Key Features :
• NoGhostTM
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent Thermal Stability
Key Features :
• Maximum field of view (FOV): 180°
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
The DSL612 lens is a miniature 4K HDR lens designed for HDR or standard sensors up to 1/1.8” format size. The low F-number, thermal stability and Sunex LowGhostTM HDR characteristics make this lens ideal for security, wearable, drone and video-conferencing applications where high sharpness and environmental stability are required.
