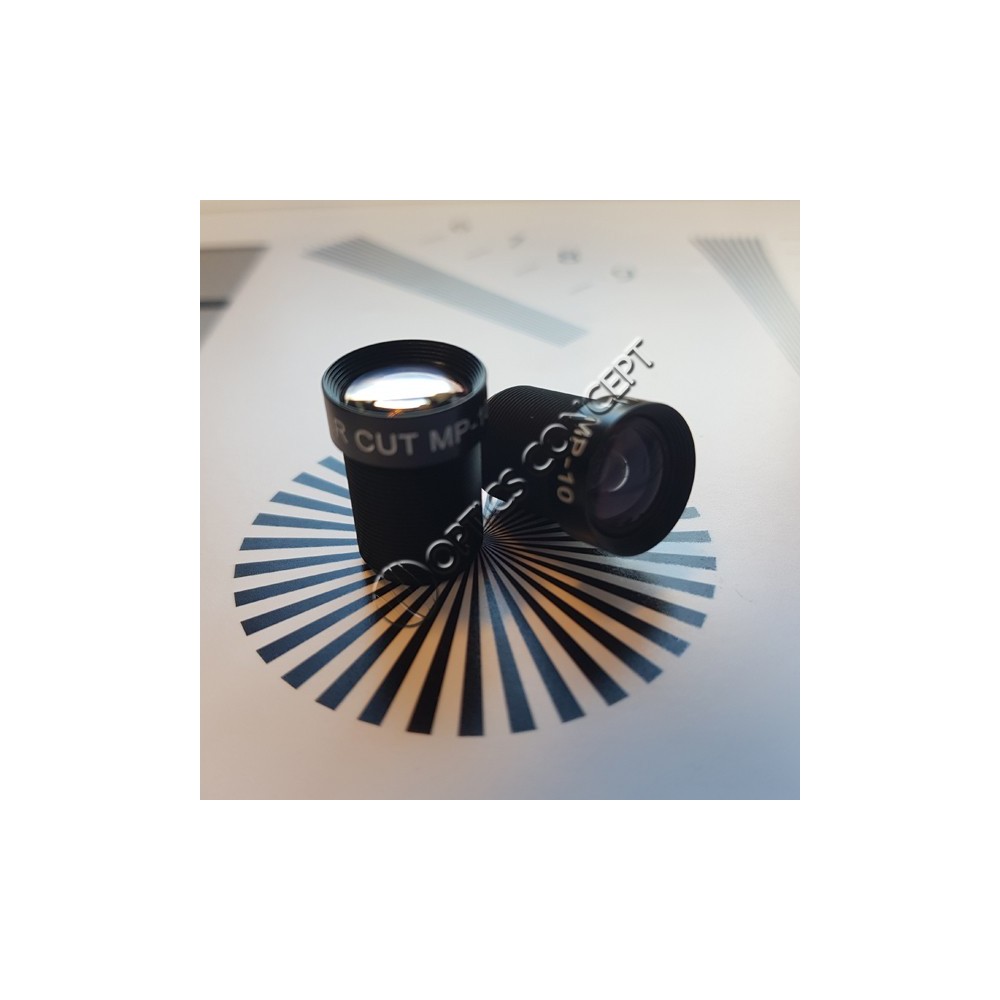

Reference: OBJ05425-650-F1.8
Data sheet
Key Features:
• Maximum field of view (FOV): 180o
• All glass design to optimize thermal stability
• F/2.0 for superior low-light performance
Application :
• Security/Surveillance
• Consumer imaging
• Automotive surround view
The DSL183 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 181 degrees on 1/3.2” to 1/1.8” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
Compatibility GoPro® HERO 1 HERO 2 HERO 3, HERO and HERO 4®
• This objective is part of a new optical generation.
• There is no better in technology.
• This optical record with a field of view of 90 °. Without cut NIR
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size
The DSL949 is a hybrid lens designed for 1/3” imagers withup to 5MP resolution. Special design techniques enable the DSL949 to achieve a wider than normal field of view with very low distortion in a small form factor.
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability
Applications :
• Security and surveillance
• Automotive rear view cameras
Key Features :
• Wide field of view : 126 deg HFOV on 1/3” imager
• Excellent low light performance: F/2.0 aperture
• All glass elements providing environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h=f*θ where f is the focal length).
Key Features :
• SuperFisheye FOV: 194°
• Tailored DistortionTM
• Superior low light performance: F/2.2 aperture
• Compact size
Applications :
• Automotive Surround View
• Security and Surveillance
• Internet of Things (IoT)
• Computer Vision
DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens
Key Features :
• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL
Applications :
• Security and Surveillance cameras
• Drone cameras
• Immersive Imaging cameras
Compatibility GoPro ® HERO 1, HERO 2, HERO 3, HERO 3+ and HERO 4®
For shooting with reduced fields the DSL 608 covers 45 ° in wide mode.
A lens with an impeccable quality.
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.
*NIR = without IR cut filter
