Reference: DSL147A-650-F1.4

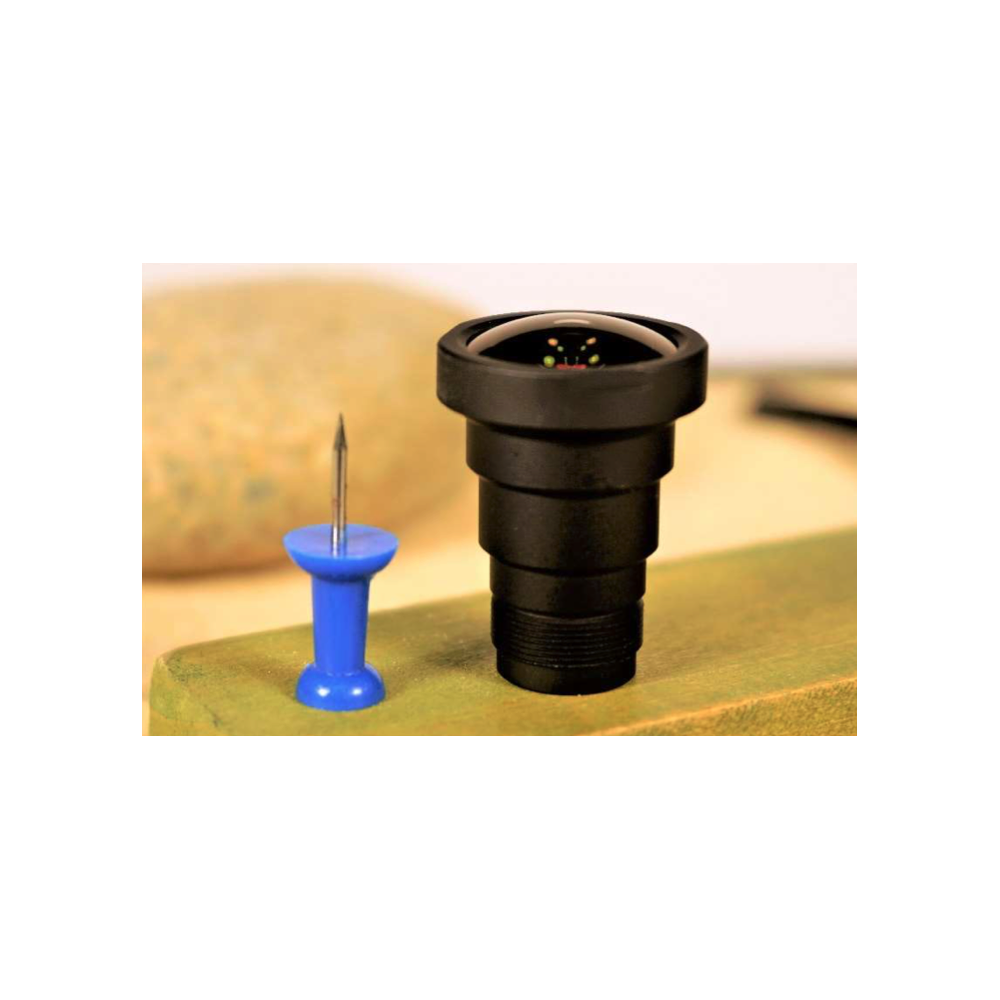

The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
Key Features :
• F/1.4 Aperture
• Wide-Angle; 122° HFOV @ 5.2mm (typical 1/2.8" horizontal)
• 4K (6-8mp) resolution on 1/3" and 1/2.8" sensors
• All glass/metal construction
Applications :
• Security
• Automotive/ADAS
• Autonomous Vehicles
• Commercial Drones
Data sheet
The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
Key Features :
• Compact Size
• F/1.6 for low light and high framerate cameras
• Excellent thermal Stability
• Optimized for HDR sensors
Application :
• Automotive Forward Machine Vision (sensing)
• Automotive Mirror Replacement (CMS/eMirror)
• Object Recognition
The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.
Available in NIR versions: No IR cut filter
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors
• Full field of view of up to 140°
• High brightness, F/2.6 aperture
• All glass design provides environmental stability
Applications :
• Security and surveillance
• Automotive rear view cameras
Compatibility GoPro ® HERO 1, HERO 2, HERO 3, HERO 3+ and HERO 4 ®
The GoPro can finally be equipped with a telephoto lens with horizontal field of view 15°.
An image of high quality.
Following the latest optical generation, this lens will give exceptional performances.
Key Features :
• Tailored DistortionTM
• 4k+ resolution
• Compact Design
Applications :
• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
NIR versions: No IR cut filter
DSL322A-650-F2.0
Key Features :
• Miniature Wide Angle Day/Night Lens
• Compact design
• High image quality
• Wide angle design
Applications :
• Security / Surveillance
• Computer Vision
Le DSL660 est un objectif grand angle haute performance conçu pour offrir des performances exceptionnelles sur les capteurs >4K avec une distorsion extrêmement faible et est optimisé pour réduire les artefacts de lumière parasite.
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
Compatible with the CMT 398
DSL217C-670-F1.8
• Maximum field of view (FOV): 185o
• F/1.8 aperture for low-light performance
• Hybrid glass-plastic design
• Suitable for megapixel resolution sensors
Key Features :
• SuperFisheye FOV: 194°
• Tailored DistortionTM
• Superior low light performance: F/2.2 aperture
• Compact size
Applications :
• Automotive Surround View
• Security and Surveillance
• Internet of Things (IoT)
• Computer Vision
Key Features :
• Low F/# for optimal low-light performance
• All glass elements provide environmental stability
• Cost effective construction
Applications :
• Security/Surveillance Dome Cameras
• Automotive surround view
Compatible with GoPro HERO1, HERO2 , HERO3, HERO3+ and HERO4 ®.
Maintains large field properties for your camera and HD quality.
It will bring you images with very low distortion and optimum color resolution.
The prefered optical of drone owners.
Choose your filter : we can offer a version for infrared observations.
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors
• Low relative aperture F/1.8
• Face Sealed to IP6K9K
• Compact size
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
