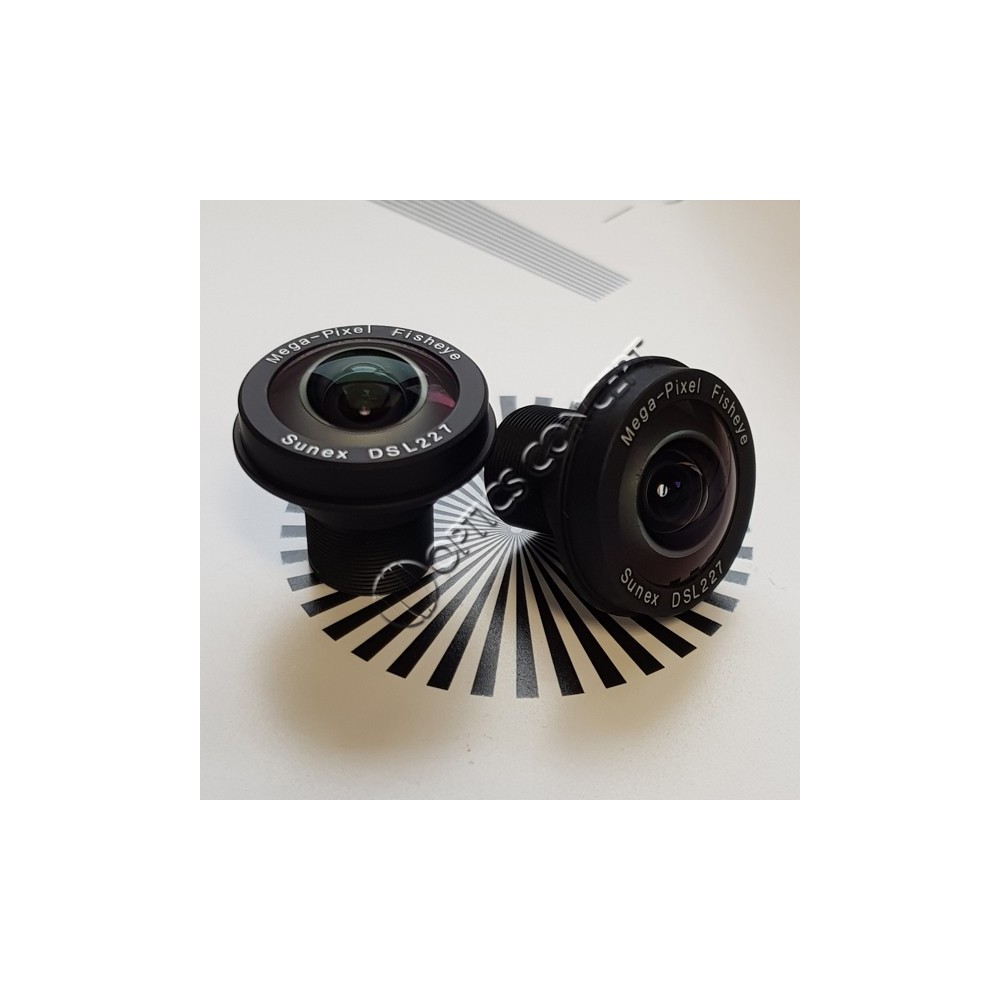

Lens DSL227A

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.

Available in NIR versions: No IR cut filter

DSL398B-660-F2.8

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Security and Surveillance
• Consumer Devices and IoT
• Drones

Key Features :

The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.

Available in NIR versions: No IR cut filter

Key Features :

•  Low F/# for optimal low-light performance
•  All glass elements provide environmental stability
•  Cost effective construction

Applications :

•  Security/Surveillance Dome Cameras
•  Automotive surround view

DSL315B-650-F2.3

Key Features :

4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability

Applications :

• Security / Surveillance
• VR / 360o cameras
• Computer Vision

Key Features :

• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)

Applications :

• Security and Surveillance

The DSL901 is a multi-element glass lens designed for 2/3” imagers with up to 1.3MP resolution. The compact form factor of the DSL901 relative to the large imager format size makes this lens ideal for size constrained machine vision applications.

*NIR = without IR cut filter

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision

Lens for M12x0.5 mount.
This lens can be used with 1/3" sensors and has an F1.6 aperture.

Key Features :

•  F/1.7 for enhanced low light sensitivity
•  All glass to optimize thermal stability
•  Low stray light for HDR sensors

Applications :

•  Automotive Forward Machine Vision (Sensing)
•  Automotive Mirror Replacement (CMS/eMirror)
•  Security Cameras
•  Computer Vision

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT
