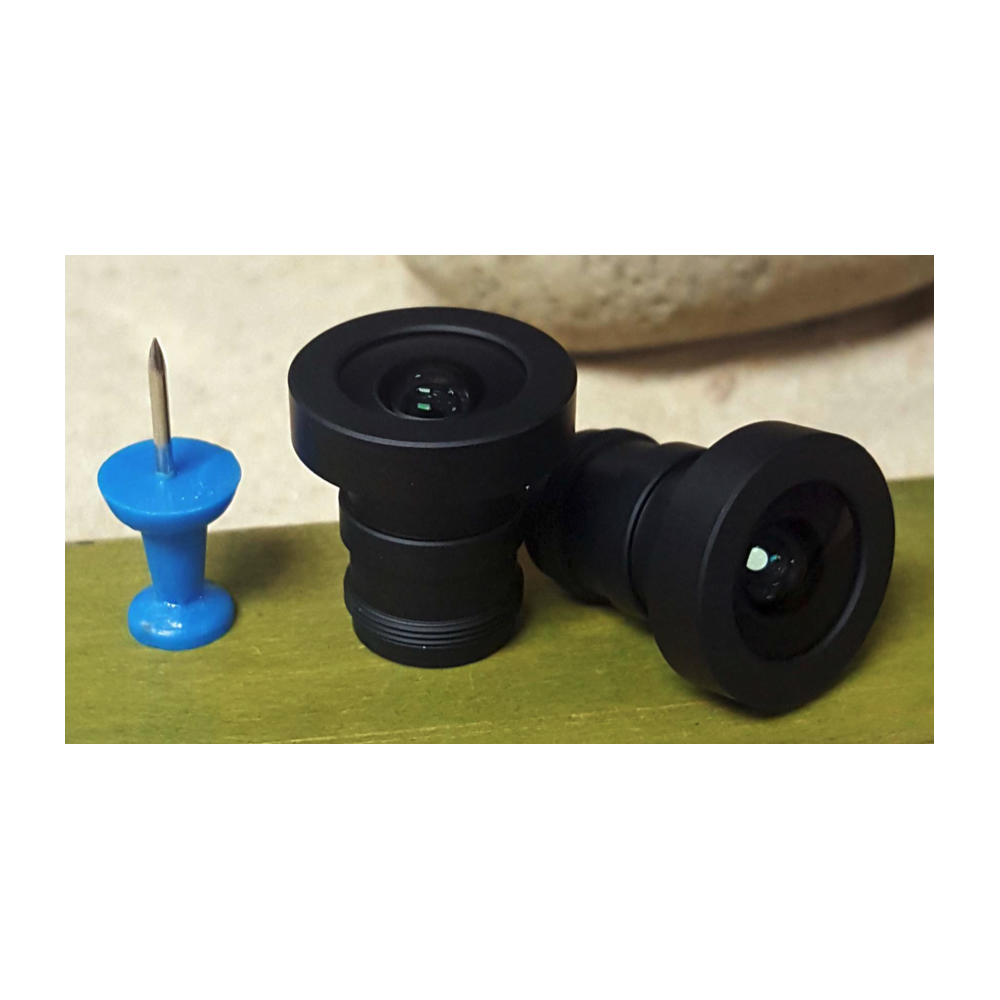

Lens DSL401

The DSL415 is a large-format, all-glass fisheye lens designed to give a full circular image on large format sensors such as 4/3” and certain 1” format sensors. The DSL415 will also provide a full HFOV of 195deg on most standard 1” imagers and full sensor coverage on [up to] 2/3” imagers.

Key Features :

• 195° Field of View
• Extremely High Resolution
• All-Glass Construction for Environmental Stability.
• F/2.4 for Excellent Low Light Performance

Applications :

• Security / Surveillance
• Broadcast cameras
• Immersive Imaging

Le DSL660 est un objectif grand angle haute performance conçu pour offrir des performances exceptionnelles sur les capteurs >4K avec une distorsion extrêmement faible et est optimisé pour réduire les artefacts de lumière parasite.

Key Features :

•  Tailored DistortionTM
•  4k+ resolution
•  Compact Design

Applications :

• Video Conferencing
• Drones
• Security and Surveillance
• Consumer Devices and IoT

The DSL945 is a 4K lens designed for 1/2.3” imagers with up to 10MP resolution. The high resolution of this lens makes it ideal for scanning and finite conjugate machine vision applications.

Key Features  :

•  Wide angle, low distortion
•  High performance compact design
•  Finite conjugate optimized

Applications :

•  Document scanning
•  Video-conferencing
•  Finite Imaging

The DSL147 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3" and 1/2.8" HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

Ultra-low F/# for superb low-light imaging in Automotive, Autonomous and Security related applications, 4K, Low-Ghost design provides excellent image quality.

• Hybrid lens for excellent image and distortion characteristics
• HDR-Optimized for Low flare and ghost
• High (4K) resolution and extremely low F/# for bright, sharp images.

DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.

DSL261

Key Features :

•. Ultra-wide FOV: 160°
•  Sunex NoGhostTM HDR-Optimized design
•  All-Glass Design for thermal stability
•  Good low light performance: F/2.8 aperture
•  Compact size

Applications :

•  Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens

Key Features :

• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL

Applications :

• Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

The DSL255 is an all-glass, miniature SuperFisheyeTM lens designed for 4K sensors with up to 1/2” format size. The SuperFisheyeTM design provides a FOV of 190 ̊ at design image circle of 4.3mm. The low F-number, compact size and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.

DSL419B-650-F2.0

Key Features :

•  SuperFisheye FOV: 180°
•  All-Glass Design•  Good low light performance: F/2.0 aperture
•  Compact size

Applications :

• Security and Surveillance
• Drones
• Immersive Imaging
• Video Communication
• Consumer Devices and IoT
