• Designed for multi-megapixel resolution sensors • Full field of view of up to 140° • High brightness, F/2.6 aperture • All glass design provides environmental stability
Applications :
• Security and surveillance • Automotive rear view cameras

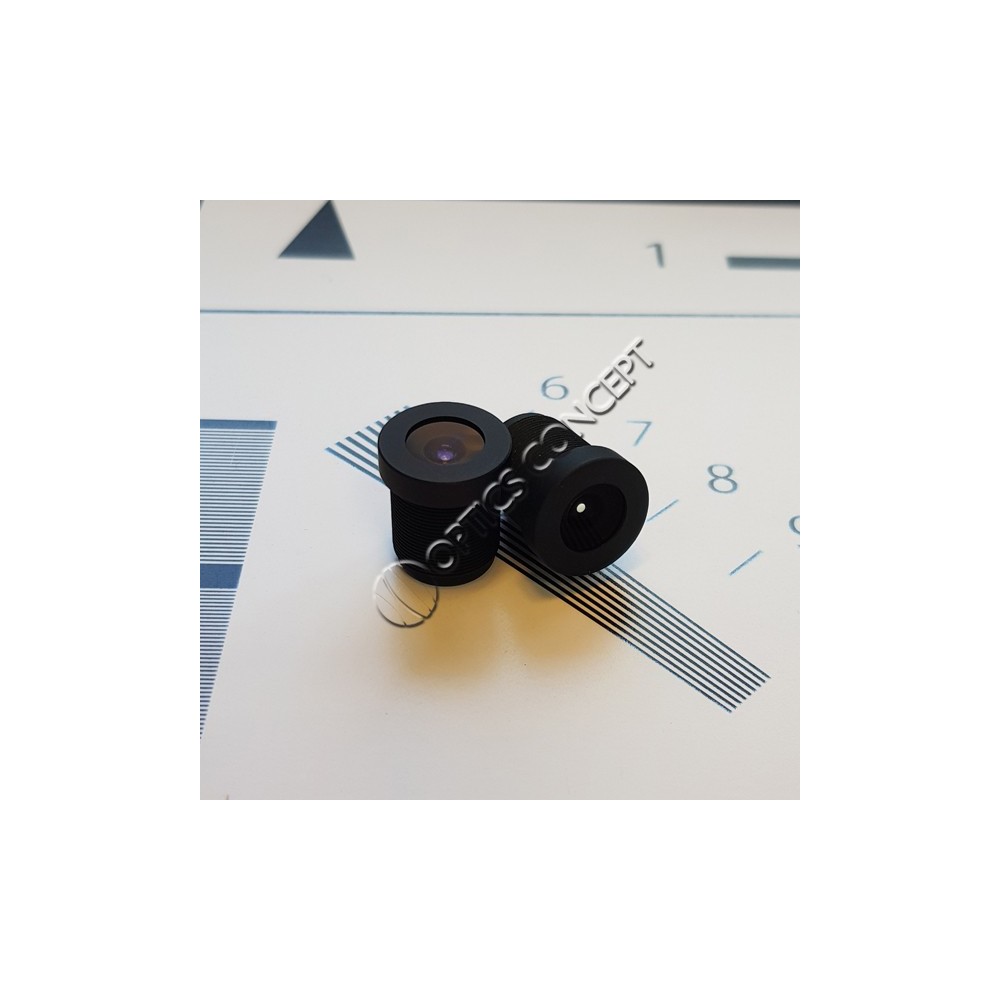

The DSL203 lens is a miniature, wide-angle lens optimized for security and automotive applications. Great resolution and an all-glass design means stable, high- quality imaging for a variety of indoor and outdoor applications.
DSL203A
Data sheet
Lens barrel thread
M12 x 0,50
Focal length
2,8 mm
Sensor size
1/3"
Resolution
Multi-megapixel
Multi-mégapixel
F/#
F/2.6
Distortion
-18% f-θ
Back focus
4,9 mm
Description
Miniature wide-angle lens
Height
20,5 mm
Diameter
14 mm
Total length
20,5 mm
Maximum FOV for image circle
140°
Image circle
5,7mm
Construction
Hybride
Body material
Metal
Color
Black
Taille du capteur maximale
1/3"
Champ de vision maximum
175° à 120°
Focale
2 à 5 mm
Ouverture
2 à 3
DSL203A Wide Angle Security Lens
Key Features :
• Designed for multi-megapixel resolution sensors • Full field of view of up to 140° • High brightness, F/2.6 aperture • All glass design provides environmental stability
Applications :
• Security and surveillance • Automotive rear view cameras
The DSL977 is an all-glass lens designed for 1MP HDR imagers. Special optical design, coating and process techniques are applied to achieve the high resolution, low relative aperture eliminating lens ghosting (120dB) and minimize flare and stray light.
Key Features :
• NoGhost, low stray light for HDR sensors • Low relative aperture F/1.8 • Face Sealed to IP6K9K • Compact size
DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.
The DSL181 lens is a miniature SuperFisheyeTM lens with Tailored DistortionTM designed with a field of view of up to 190 degrees on 1/4” to 1/2” format imagers with HD resolution. The low F-number, thermal stability, and special distortion characteristics make this lens ideal for exterior based camera applications.
DSL165 is a high-performance lens with ultra-low F/# for superior low light imaging in Automotive, Autonomous and Security applications. Low-Ghost HDR and 4K design provide excellent image quality. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments.
The DSL212 is a miniature wide-angle all-glass lens with Tailored Distortion. This lens was optimized for 1/3” format sensors with up to HD resolution. The Tailored Distortion wide field of view and all glass construction make it ideal for outdoor applications which depend on off axis angular resolution.
The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.
The DSL612 lens is a miniature 4K HDR lens designed for HDR or standard sensors up to 1/1.8” format size. The low F-number, thermal stability and Sunex LowGhostTM HDR characteristics make this lens ideal for security, wearable, drone and video-conferencing applications where high sharpness and environmental stability are required.
The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.
The DSL213 is a miniature wide-angle and Day/Night lens designed for 1/3” format imagers with up to 2MP resolution. The Near Infrared correction and low F/# make this lens ideal for compact applications using active 850nm or 940nm light sources, and those used in low light situations.
The DSL146 is a high-performance, wide-angle, low-light lens with 4K resolution and F/1.4 aperture, designed for 1/3” and 1/2.8” HDR sensors. The all-glass construction makes it thermally stable and ideally-suited for indoor or outdoor applications in harsh environments
The DSL491 is an all-glass, high-resolution (4K+), wide- angle lens designed for HDR and/or 4K sensors up to 1/2”format size. The design provides a maximum FOV of 150 ̊ at maximum image circle of 8.0mm. The compactsize and thermal stability make this lens ideal for security and other high-quality indoor/outdoor imaging applications.
• Wide field of view: 75°HFOV on 1/4” imager • All glass elements provides environmental stability • Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)
