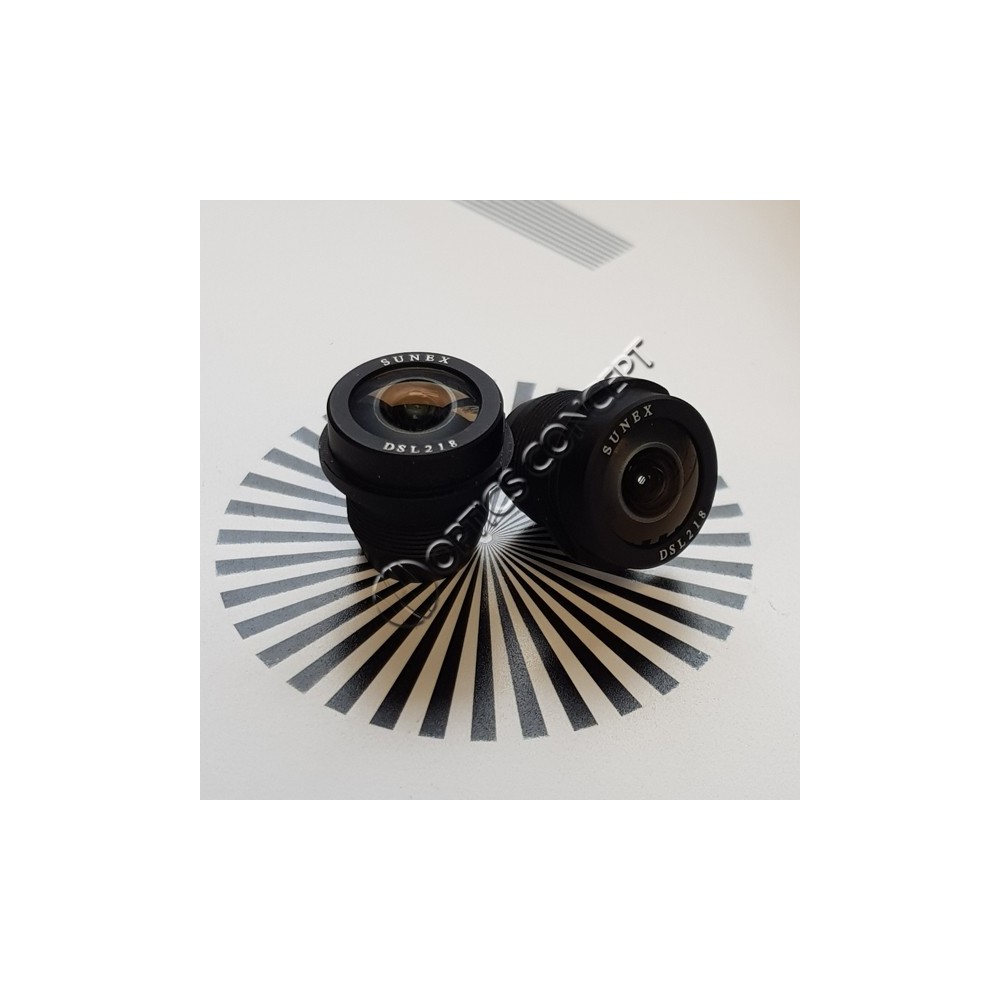

Lens DSL218A

DSL208A-650-F4.0 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

Key Features :

•  Low F/# for optimal low-light performance
•  All glass elements provide environmental stability
•  Cost effective construction

Applications :

•  Security/Surveillance Dome Cameras
•  Automotive surround view

DSL217C-670-F1.8

•  Maximum field of view (FOV): 185o
•  F/1.8 aperture for low-light performance
•  Hybrid glass-plastic design
•  Suitable for megapixel resolution sensors

DSL216 lens is a miniature, high-resolution SuperFisheyeTM lens designed to give a fisheye image with a horizontal field of view greater than 180 degrees on a 1/3” format sensor making it ideal for security or emerging applications like 360° cameras. Additionally, the DSL216 has an all-glass all-metal design which gives it thermal stability.

DSL239-650-F2.4
4K Miniature SuperFisheyeTM Lens

Key Features :

• SuperFisheye FOV: 186°
• Good low light perfomance : F/2.4 aperture
• 27,00mm TTL

Applications :

• Security and Surveillance cameras
•  Drone cameras
•  Immersive Imaging cameras

Key Features:

•  176° wide angle FoV
•  Good low light performance: F/2.0 relative aperture
•  All glass design to optimize thermal stability

Applications:

•  Automotive Rear View Cameras
•  Security and Surveillance
•  Computer Vision

DSL315B-650-F2.3

Key Features :

4K Miniature SuperFisheye TM Lens
• 190-degree field of view
• Compatible with many common sensor formats/resolutions
• All glass elements provide environmental stability

Applications :

• Security / Surveillance
• VR / 360o cameras
• Computer Vision

The DSL209 lens is a miniature wide-angle lens optimized for 1/4” format imagers with HD resolution. The wide field of view, low F-number, and f-θ distortion make this lens ideal for security and automotive applications.

Available in NIR versions: No IR cut filter

DSL208 lens is a miniature glass lens optimized for HD imagers up to 1/3” format with HD resolution. This lens is Day/Night optimized and is near infrared corrected.

Available in NIR versions: No IR cut filter

The DSL936 is a multi-element glass lens optimized for 1⁄2” imagers with up to 5MP resolution. The DSL936 is Day/Night optimized for improved performance in the near infrared making this lens ideal for applications which require active illumination at 850nm or 940nm.

The DSL180 lens is a Tailored DistortionTM, miniature SuperFisheyeTM lens designed with a field of view of up to 200 degrees on 1/5” to 1/2.8” format imagers with HD resolution. Special design techniques and hybrid design form are used to achieve increased magnification (angular resolution) off axis compared to a standard fisheye lens.

NIR versions: No IR cut filter

Key Features :

• Wide field of view: 75°HFOV on 1/4” imager
• All glass elements provides environmental stability
• Distortion: f-θ type (image height is proportional to the input angle h = f*θ where f is the focal length)

Applications :

• Security and Surveillance

DSL355A-650-F2.8

Key Features :

• Miniature Wide Angle Lens
• Compact size
• High image quality
• Low distortion

Applications :

• Security / Surveillance
• Telecommunications / Video-Conferencing
• Action Cameras

Key Features :

•  Compact Size
•  F/1.6 for low light and high framerate cameras
•  Excellent thermal Stability
•  Optimized for HDR sensors

Application :

•  Automotive Forward Machine Vision (sensing)
•  Automotive Mirror Replacement (CMS/eMirror)
•  Object Recognition
